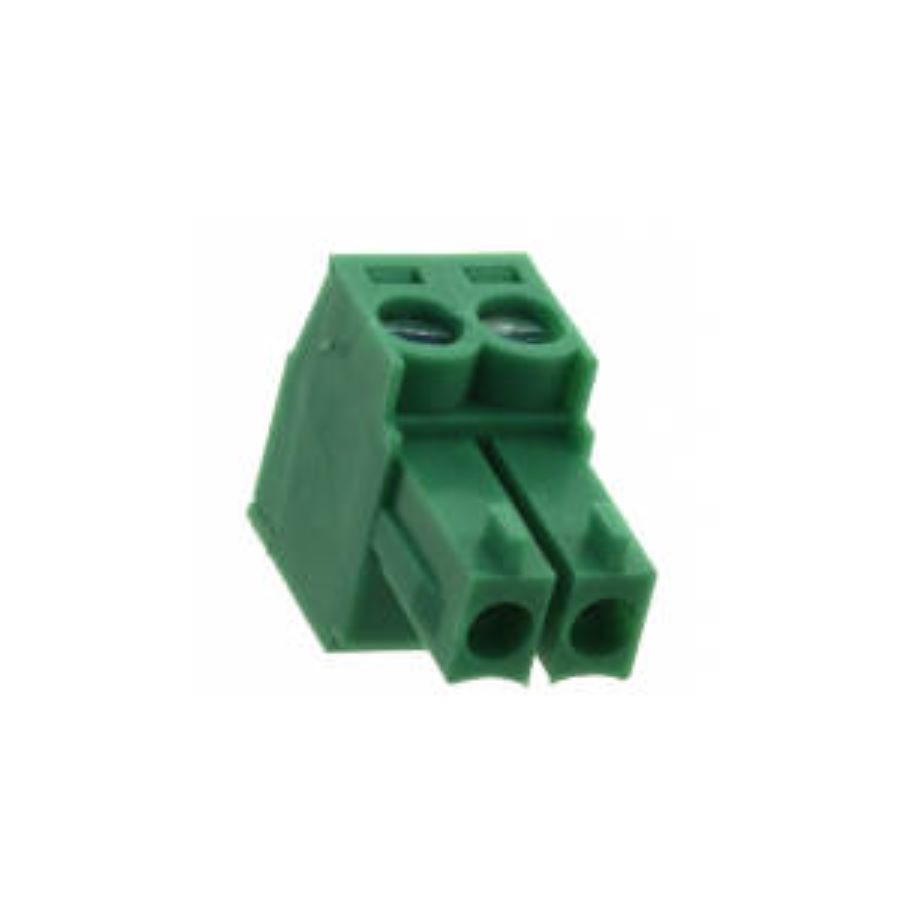

691361100002
Manufacturer:
Wurth Electronics
Mfr.Part #:
691361100002
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.5 mm 10 A 300 V 26 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 15.8 mm |
| Width | 3.5 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.1 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Color | Green |
| Gender | Female |
| Number of Contacts | 2 |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 16 AWG |
| Stripping Length | -7 mm |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 16 AWG |
Stock: 1095
Distributors
pcbx
pcbxUnit Price$0.91392
Ext.Price$0.91392
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91392 | $0.91392 |
| 10 | $0.81987 | $8.19870 |
| 25 | $0.76136 | $19.03400 |
| 50 | $0.70703 | $35.35150 |
| 100 | $0.63180 | $63.18000 |
| 300 | $0.59481 | $178.44300 |
| 500 | $0.55998 | $279.99000 |
